Context

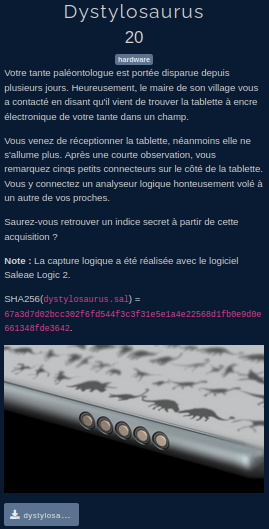

We are given the capture made with Salae Logic 2 (dystalosaurus.sal)

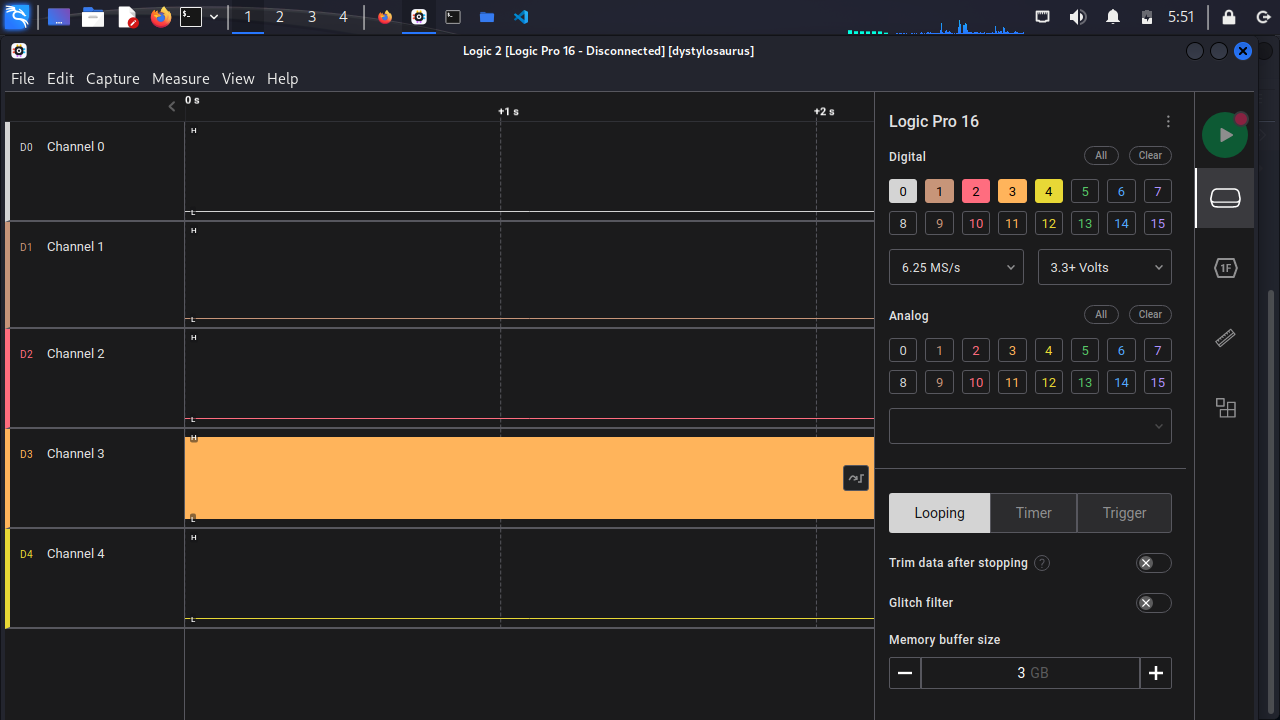

We install Salae Logic 2 and open the capture:

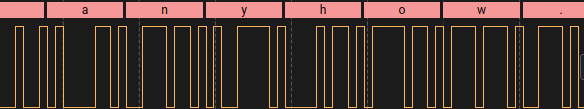

By zooming it gives something like this.
It seems to be only one signal, no clock.

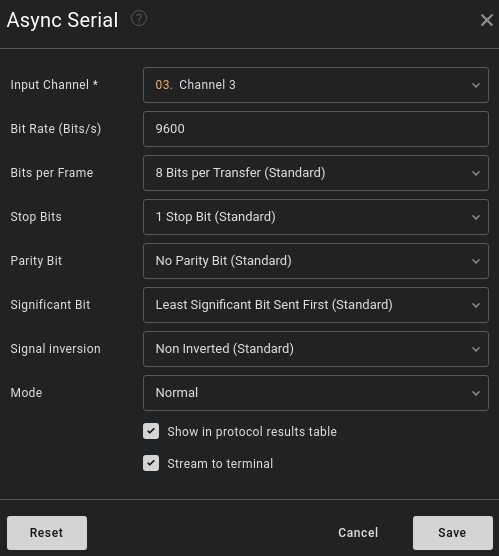

By searching on the internet, Salae Logic 2 has analyzers to read the signal. Since there is no clock, I create an Async Serial analyzer like this:
It looks like the analyzer found text:

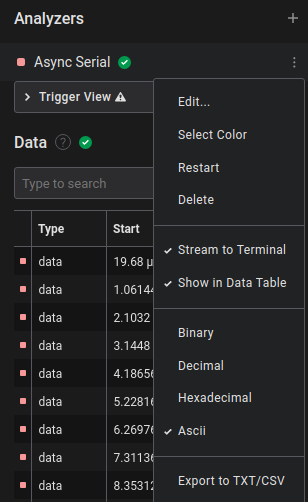

I export to TXT/CSV

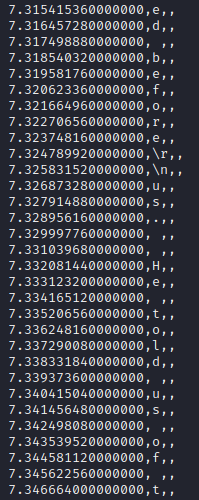

Here is the result:

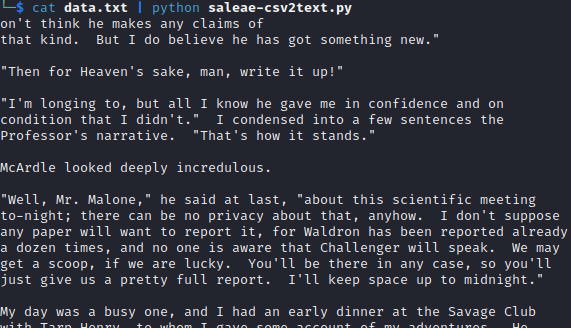

With a python script, we reconstruct the text:
We filter to get the flag 🙂:
